Dodge Viper SRT-10 (2003-10) Stainless Steel “FENDER” Emblems (set of 2)

Description

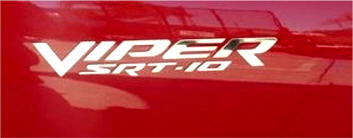

High-polished stainless steel emblems designed to replace your factory plastic emblems on the right and left fenders. These will never rust, corrode, or lose their luster.

Remove your factory plastic emblems easily using the included tool.

Easy peel-and-stick mounting — stays firmly in place until you decide to remove it.

Includes two (2) “VIPER SRT-10” emblems, one for each fender.

SIZE: Approximately the same size as the stock fender logo.

Included: Map, promoter packet, pink emblem remover tool, and emblems.

1. Wash the area where you’ll mount the emblems with soap and water. Then wipe it down with rubbing alcohol to remove any oils on the paint surface. This will not harm your paint.
   If your car has recently been waxed, clean the area with an isopropyl solution (available at most hardware stores). Any wax, oil, or fingerprints on the surface will prevent proper adhesion.
2. Removing the old emblem: Use masking tape to outline the emblem on the bottom and left sides (not the right). This will create a placement guide shaped like an “L.” (See Diagram 1.)
3. Use the included pink scraper to carefully pry beneath the old emblem (Diagram 2). The tool should remove it easily without scratching your paint.
4. With the masking tape still in place, remove the backing from the “map” sheet and stick it onto the car, aligning it with the tape. Ensure the letters are positioned correctly, then peel off the front clear layer of the map.
5. Important: Some mounting surfaces may be curved. Gently bend the new emblem letters to match the car’s contour. Test-fit each piece and adjust as needed until it fits properly. (See Diagram 3.)
6. Hold each new emblem letter (without peeling off the backing) up to its spot on the map to get familiar with the placement.
   Note: You can also make small pencil marks on the masking tape to indicate where each letter begins for precise alignment.
   Once you’re satisfied, use the included promoter packet to wipe the area inside each letter space on the map. This will not damage your paint.
7. Peel the liner from the back of each new emblem letter and carefully position it in place. Gently set it down without pressing yet. Make any necessary adjustments (see Diagram 3), then press firmly over the entire surface to ensure a tight bond.
   Repeat for each letter, then remove the map sheet and masking tape — you’re done!
