Dodge Viper (1992-2002) Cup Holder Choose High Polished or Satin Finish

Description

A brushed all-aluminum cup holder bezel ring with two O-rings for a tight fit. Drill a hole in your center console using our easy-to-follow instructions to locate the correct position. Then insert the cup holder ring.

It’s easy to install — and what a difference it makes! Now you can keep a can of soda conveniently out of the way yet within easy reach. It leaves room for your arm to rest on the console and does not interfere with the shifter or parking brake handle.

You do not need to remove any parts from your car. Requires a three-inch diameter hole, as indicated in the included instructions. Fits and works perfectly.

INSTALLATION INSTRUCTIONS

Items Included – Standard Kit:

• 1 – Cup holder trim ring
• 2 – Rubber O-rings
• 1 – 3″ drill bit (only included in part kit #DVCH026)

1. Carefully prepare the surface of your interior center console. First, apply masking tape to the area where the cup holder will be installed.

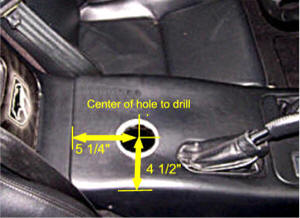

2. Find the center point of the circle where the cup holder will go. Measure 4.5 inches (4½”) from the passenger-side edge of the center console and mark the spot. Then measure 5.25 inches (5¼”) from the rear lip of the console and make another mark that crosses the first. The intersection (“X”) marks the center point. Refer to the included diagram.

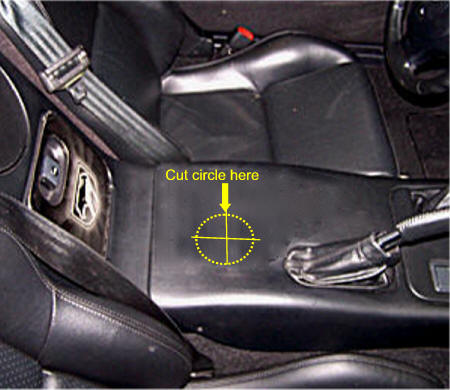

3. Use the provided cardboard pattern, or use a drawing compass. Place the compass point on the “X” and extend the pencil leg to 1.5 inches (radius). Draw a circle with a 3-inch diameter.

NOTE: Do not make the hole larger than 3 inches. It’s better to start slightly smaller and enlarge it with a file if necessary.

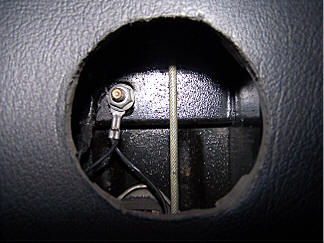

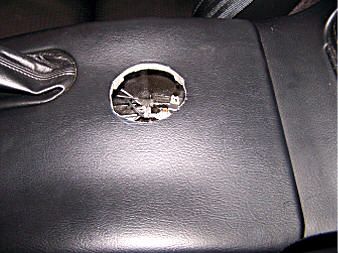

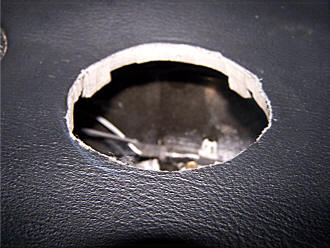

4. Place the 3-inch drill bit at the center and carefully drill the hole. Hold the drill steady with both hands to prevent slipping.

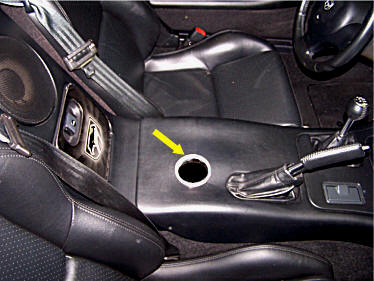

5. Insert the cup holder into the hole. The cup holder includes a rubber O-ring seal, but you may also apply a small amount of silicone if desired for additional sealing.

NOTE: If the hole is too small, use a file or coarse sandpaper to slightly enlarge it. If the hole is too large, use a beauty ring (3-inch washer) around the cup holder for a proper fit.
